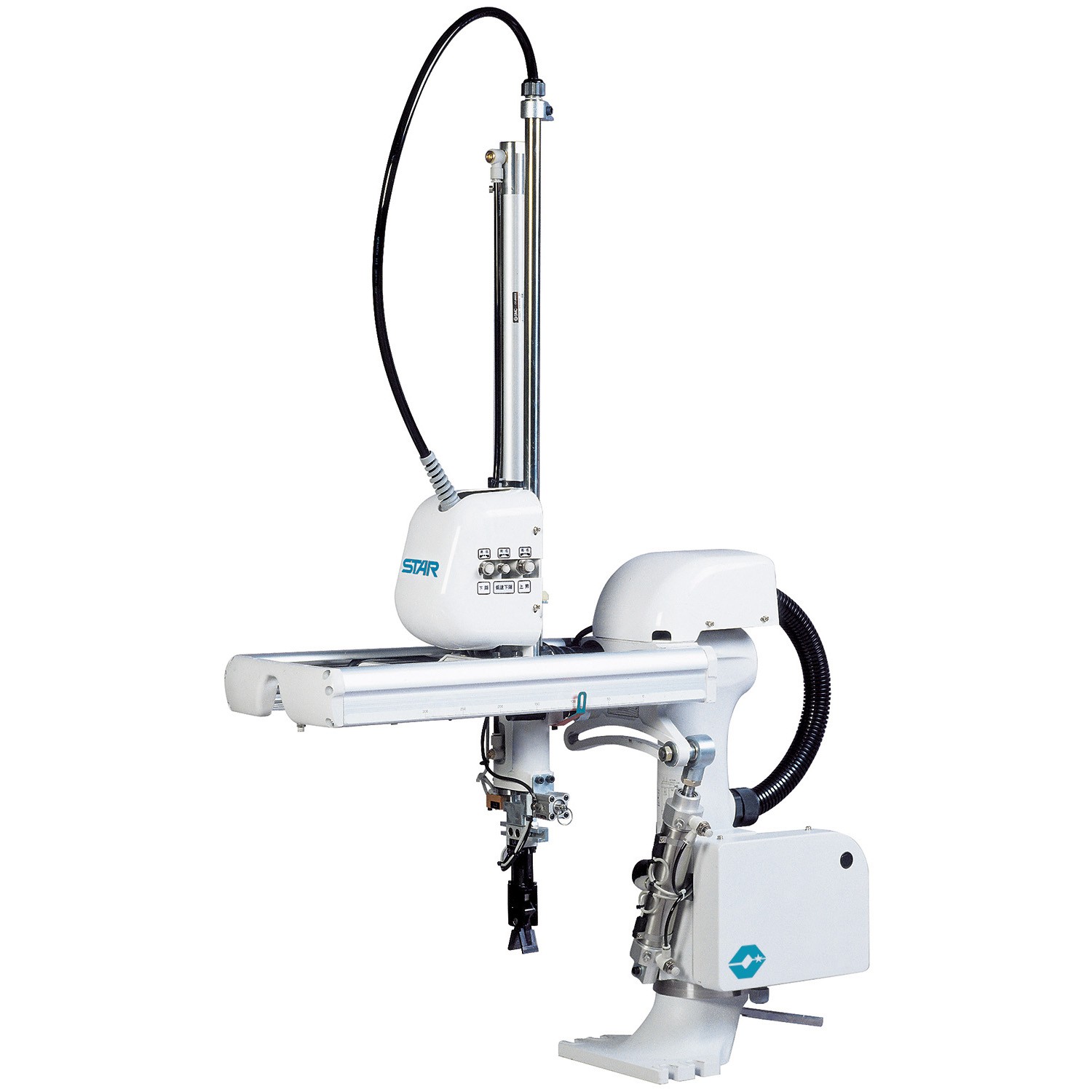

XQ-600V Sprue Picker Robots

XQ-600V

SKU: C9055505-C646-4627-9886-6C6F0D77E764
Download Model PDF
Vertical
Stroke (mm)
Range of
IMM (Ton):
Traverse
Stroke (mm)
Crosswise
Stroke (mm)
Download
Model PDF
600 80-180 90 75 Download

Technical Specs:

Star Automation’s XQ-600V swing type sprue picker is built with your convenience in mind. A simple and compact design is realized by the elimination of unnecessary wirings and pipings. An e-switch on the operation pendant promotes safe operation. The XQ-600V is bilingual with English and Japanese display options. The machine is capable of holding 15 different mold changes in its memory. View the model's PDF for full specifications.

The XQ-V series includes a variety of models with a range of IMM in tons from 30-80 tons to 160-350 tons. A Star Automation representative can help you determine whether this model of sprue picker is ideal for your purposes. We'll also provide industry-leading customer service and maintenance, even beyond the sale.

Power Source

200~575 VAC 60Hz

Max Power Consumption

0.3A 200V MAX

Air Pressure

0.49MPa

Air Consumption

9.0Nâ„“ /cycle

Max Reach

350mm

Vertical Standby Position

168mm

Max Loading Capacity

2 kg (4.4 lbs)

Control Box

STEC-S1

Optional Functions:

  • Vacuum confirmation unit
  • Air nipper in chuck
  • Defective product reject circuit
  • Chuck twist (C type)
  • Special paint color
