XQ-450V Sprue Picker Robots

All Robots/
XQ-450V

XQ-450V

SKU: ED4F44F9-FB20-46E5-9E7E-E4126C382357
Download Model PDF
Vertical
Stroke (mm)		 Range of
IMM (Ton):		 Traverse
Stroke (mm)		 Crosswise
Stroke (mm)		 Download
Model PDF
450 30-80 90 75 Download
Get a quote Request service for parts

Technical Specs:

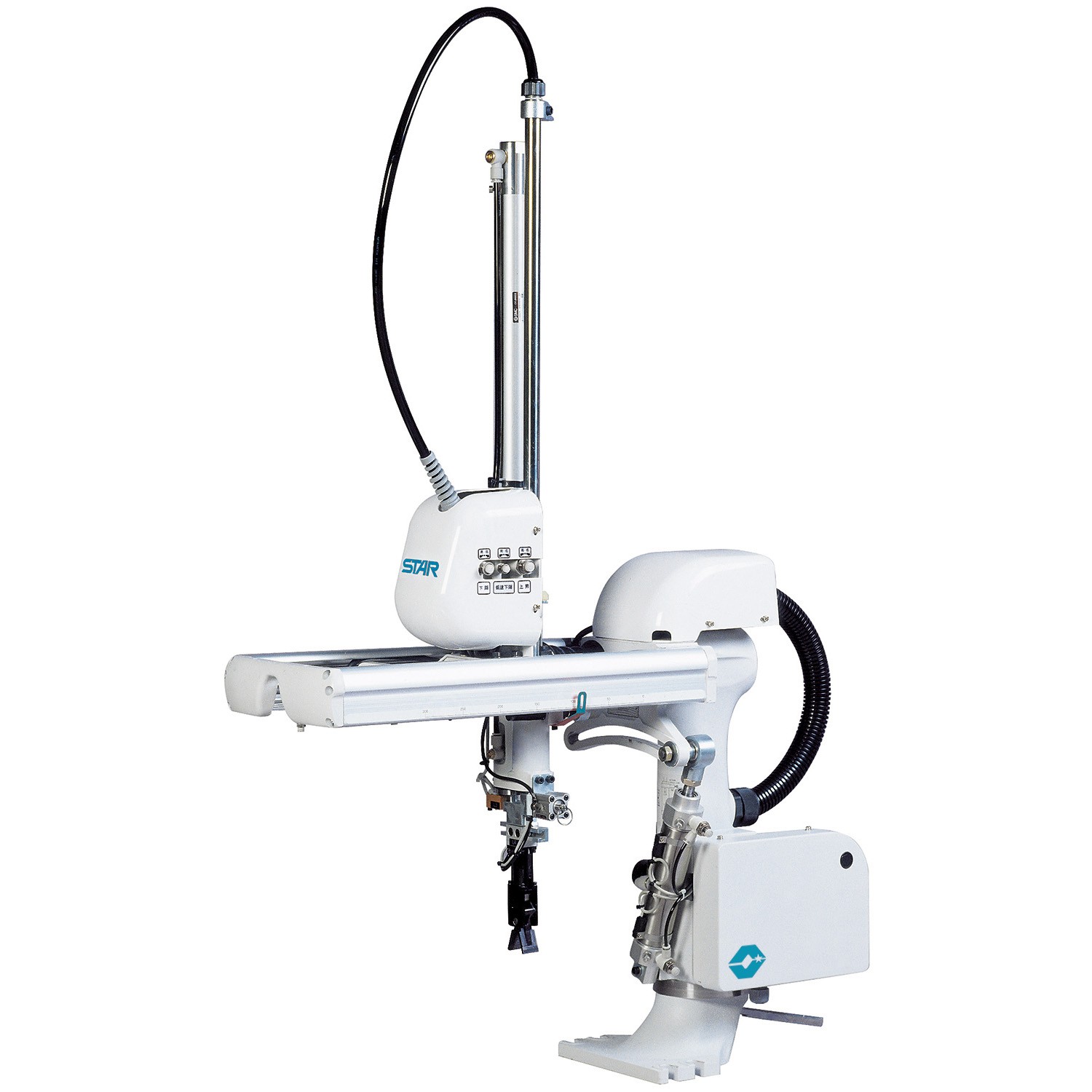

Star Automation’s XQ-450V is a simple and compact swing-type sprue picker. This model was built without unnecessary wirings and pipings to improve efficiency and decrease size. An e-switch, adopted on the operation pendant, ensures safer operation. The XQ-450V is bilingual; either English or Japanese displays can be selected. The machine can hold memory for up to 15 different molds.

View the model's PDF for full specifications. A Star Automation representative can help you determine whether this model is best suited for you, then provide unparalleled customer service and maintenance beyond the sale.

Power Source

200~575 VAC 60Hz

Max Power Consumption

0.3A 200V MAX

Air Pressure

0.49MPa

Air Consumption

7.4Nℓ /cycle

Max Reach

350mm

Vertical Standby Position

168mm

Max Loading Capacity

2 kg (4.4 lbs)

Control Box

STEC-S1

Optional Functions:

  • Vacuum confirmation unit
  • Air nipper in chuck
  • Defective product reject circuit
  • Chuck twist (C type)
  • Special paint color
