All Robots/Servo Robots/SA Series
SA Series Servo Motor Driven Automatic Unloader

Interested in this model?

Robot Models Vertical
Stroke (mm)		 Range of
IMM (Ton)		 Traverse
Stroke (mm)		 Crosswise
Stroke (mm)		 Spec
Sheets

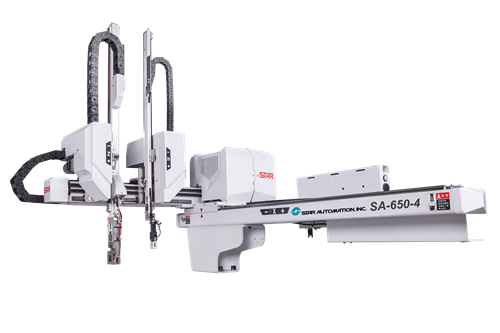

SA-650(S)-3 650 40-100 1000 440 Download
SA-800(S)-3 800 80-300 1600 690 Download

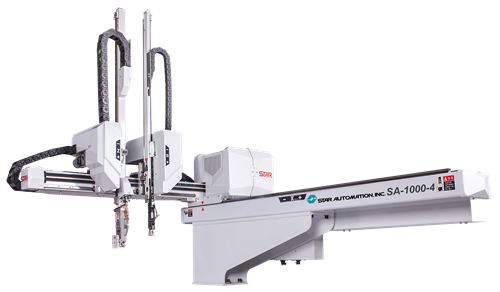

SA-1000(S)-3 1000 80-300 1800 690 Download

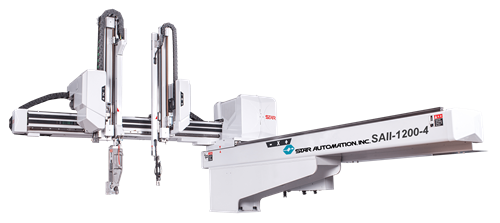

SAII-1200(S)-3 1200 350-600 2000 1180 Download

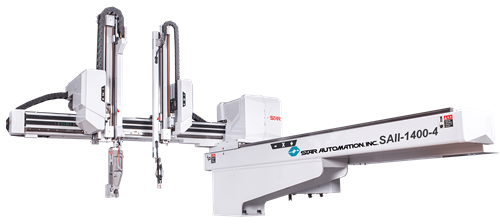

SAII-1400(S)-3 1400 450-750 2200 1180 Download
SA Series Compare (5) Models
Model: SA-650(S)-3
Download
Vertical Stroke (mm):
650
Range of IMM (Ton):
40-100
Traverse Stroke (mm):
1000
Crosswise Stroke (mm):
440
Model: SA-800(S)-3
Download
Vertical Stroke (mm):
800
Range of IMM (Ton):
80-300
Traverse Stroke (mm):
1600
Crosswise Stroke (mm):
690
Model: SA-1000(S)-3
Download
Vertical Stroke (mm):
1000
Range of IMM (Ton):
80-300
Traverse Stroke (mm):
1800
Crosswise Stroke (mm):
690
Model: SAII-1200(S)-3
Download
Vertical Stroke (mm):
1200
Range of IMM (Ton):
350-600
Traverse Stroke (mm):
2000
Crosswise Stroke (mm):
1180
Model: SAII-1400(S)-3
Download
Vertical Stroke (mm):
1400
Range of IMM (Ton):
450-750
Traverse Stroke (mm):
2200
Crosswise Stroke (mm):
1180

Interested in this model?

Technical Specs:

  • Programmable Controllers
  • User Intuitive
  • Minimal training & support needed
  • Available worldwide 24/7
  • Learn More
  • Robotic Arms
  • Efficient systems for the job
  • More output
  • Minimized operating costs
  • Learn More
  • End of Arm Tooling (EOAT)
  • Precision picking & pulling
  • Custom to your set up
  • Engineered dependability
  • Learn More

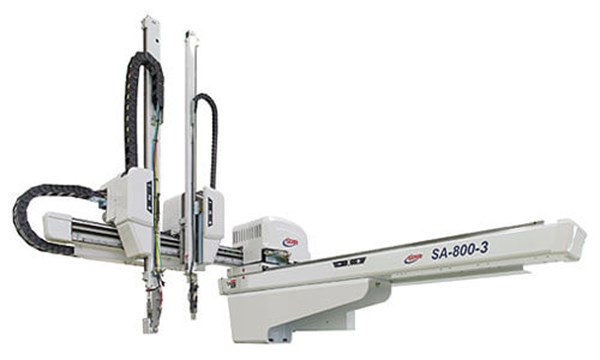

Star Automation’s SA Series of servo motor driven robots are manufactured to perform quality and efficient automatic unloader functions to increase the productivity of your IMM plastics operation. With standard functions such as:

  • Extract descent standby
  • Energy saving vacuum confirmation unit (1circuit)
  • Ejector forward & return link
  • Runner release within mold
  • Crosswise product extract side posture control
  • Midway runner release (Advance & Return)
  • Crosswise Free Servo point
  • Posture control during traverse
  • And more

The SA Series also boasts the wonderfully easy to use STEC-NC2a high-performance pendant with features like a touch screen for easy operation, multi-color operation keys for improved visibility, and two language exchange (English & Spanish). Star Automation will find the perfect SA Series model best suited for your IMM plastics operation’s needs and provide industry best customer service and maintenance beyond the sale.

The SA Series consists of a variety of models with a range of IMM in tons from 40-100 to 450-750.

For more information or a free quote on a SA Series servo motor driven robot, contact Star Automation today.
