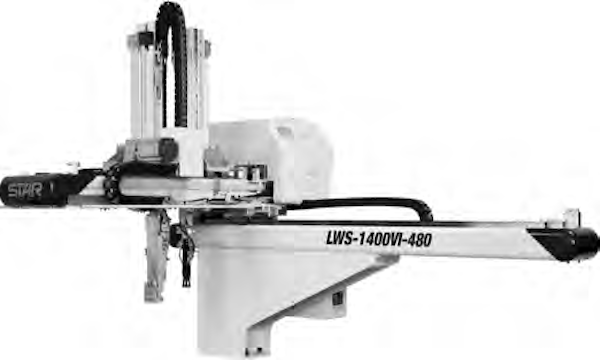

LW(S)-1400VI Injection Molding Servo Robots
LW(S)-1400VI
| Vertical Stroke (mm) |
Range of IMM (Ton): |
Traverse Stroke (mm) |
Crosswise Stroke (mm) |
Download Model PDF |
|---|---|---|---|---|
| 1450 | 300-750 | 2200 | 770 |
 Download
|
Technical Specs:
Star Automation’s LW-VI Series servo motor-driven automatic unloaders are manufactured to increase the efficiency and quality of your factory’s automation. Equipped with easy to operate, high-performance pendants the LW-VI Series servo robots can be operated by anyone once properly trained. Star Automation will help you find the model best suited for you, then provide industry-best customer service and maintenance beyond the sale.
Determine whether the LW-1400VI or LWS-1400VI is right for your operations:
|
Power Source |
200 VAC ± 10% 60 Hz |
|
Air Pressure |
70 psi (.48 MPa) |
|
Drive |
AC Servo Motor |
|
Posture (air cylinder) |
90° |
|
Recommended Max Load |
11 lbs (5 kg) |
|
Posture Torque @ 70 PSI |
10.9 ft-lbs (14.78 N•m) |
|
Control Types |
STEC-480 |
Standard Features
- Vacuum Generator with Part Present Sensor
- Part Grip Circuit
- Sprue Grip Circuit
- Selectable Fixed Side Extract
- Defective Product Drop
- Sample and Chuck Change Positions
- Product Packaging (256 each axis)
- CNC Step Programming
- Compact Flash Memory
- CPC® and AMP® Connections at the Head
- Active Vibration Control
- IMM Mounting Weldment
- Multi-Level Password Protection
- Position, Speed, and Timer Adjust in Auto
- Alarm History
- Grease Pocket LM Bearings
Overall Dimensions
|
|
LW-1400VI |
LWS-1400VI |
|
Overall Height |
67.72" (1720mm) |
67.72" (1720mm) |
|
Overall Width |
116.22" (2952mm) |
116.22" (2952mm) |
|
Traverse Stroke |
86.61" (2200mm) |
86.61" (2200mm) |
|
Overhang, Release Side |
14.80" (376mm) |
14.80" (376mm) |
|
Cable Guide Overhang |
0" (0mm) |
0" (0mm) |
|
(P) Vertical Stroke |
57.09" (1450mm) |
57.09" (1450mm) |
|
(P) Vertical Standby |
9.84" (250mm) |
9.84" (250mm) |
|
Bottom of Crosswise to Chuck Mount Position |
12.80" (325mm) |
12.80" (325mm) |
|
Crosswise arm |
50.26" (1276.5mm) |
50.26" (1276.5mm) |
|
Thickness |
20.71" (526mm) |
20.71" (526mm) |
|
(R) Vertical Standby |
- |
11.81" (300mm) |
|
(P) Crosswise Reach |
33.46" (850mm) |
33.46" (850mm) |
|
(P) Crosswise Stroke Max |
30.31" (770mm) |
26.57" (675mm) |
|
(P) Crosswise Standby Min |
3.15" (80mm) |
6.89" (175mm) |
|
(P) (R) Proximity Min |
- |
5.31" (135mm) |
|
(R) Crosswise Stroke Max |
- |
26.57" (675mm) |
|
(R) Crosswise Standby Min |
- |
1.57" (40mm) |
|
Base Offset |
2.95" (75mm) |
2.95" (75mm) |
|
Mold Mounting Face - Box End |
23.27" (591mm) |
23.27" (591mm) |
Optional Features
- Additional Vacuum Generator with Part Present Sensor
- Additional Part Grip
- Nipper on Chuck
- Rotation 90°, 180° 2-Position, 180° 3-Position
- Shuttle on Tool
- Mold Spray
- Air Blow
- 1-3 Color Alarm Light
- Special Paint
- Free Packaging
- Central Lube
- Quick Chuck Change
