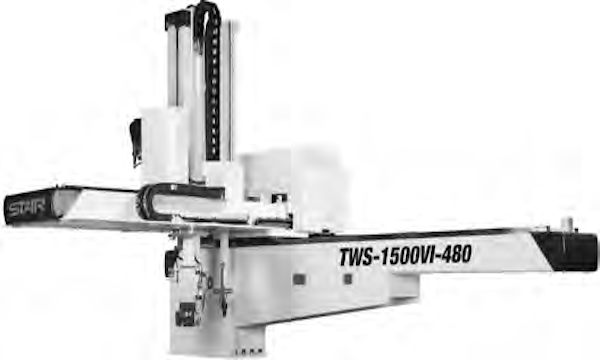

TW(S)-1500VI Injection Molding Servo Robots
TW(S)-1500VI
| Vertical Stroke (mm) |
Range of IMM (Ton): |
Traverse Stroke (mm) |
Crosswise Stroke (mm) |
Download Model PDF |
|---|---|---|---|---|
| 1500 | 650-1350 | 2500 | 1590 |
 Download
|
Technical Specs:
Star Automation’s TW-VI Series servo motor-driven automatic unloaders are manufactured to increase the efficiency and quality of your factory’s automation. Equipped with easy to operate, high-performance pendants the TW-VI Series servo robots can be operated by anyone once properly trained. Star Automation will help you find the model best suited for you, then provide industry-best customer service and maintenance beyond the sale.
See product PDF for full spec details and diagram.
|
Power Source |
200 VAC ± 10% 60 Hz |
|
Air Pressure |
70 psi (.48 MPa) |
|
Drive |
AC Servo Motor |
|
Posture (air cylinder) |
90° |
|
Recommended Max Load |
77 lbs (35 kg)* |
|
Posture Torque @ 70 PSI |
64.9 ft-lbs (88 N•m) |
|
Control Types |
STEC-480 |
Standard Features
- Vacuum Generator with Part Present Sensor
- Part Grip Circuit
- Sprue Grip Circuit
- Selectable Fixed Side Extract
- Defective Product Drop
- Sample and Chuck Change Positions
- Product Packaging (256 each axis)
- CNC Step Programming
- Compact Flash Memory
- CPC® and AMP® Connections at the Head
- Active Vibration Control
- IMM Mounting Weldment
- Multi-Level Password Protection
- Position, Speed, and Timer Adjust in Auto
- Alarm History
- Grease Pocket LM Bearings
- Central Lube
- Vacuum Pressure Display & Adjust
*It is possible to increase the Maximum Load capacity depending on the speed acceleration & deceleration data.
Overall Dimensions
|
|
TW-1500VI |
TWS-1500VI |
|
Overall Height |
80.31" (2040mm) |
81.70" (2075mm) |
|
Overall Width |
140.43" (3567mm) |
140.43" (3567mm) |
|
Traverse Stroke |
98.43" (2500mm) |
98.43" (2500mm) |
|
Overhang, release side |
21.30" (541mm) |
21.30" (541mm) |
|
Cable Guide Overhang |
0.0" (0mm) |
0.0" (0mm) |
|
(P) Vertical Stroke |
59.06" (1500mm) |
59.06" (1500mm) |
|
(P) Vertical Standby |
9.84" (250mm) |
9.84" (250mm) |
|
Bottom of Crosswise to Chuck Mount Position |
21.65" (550mm) |
21.65" (550mm) |
|
Crosswise arm |
87.09" (2212mm) |
87.09" (2212mm) |
|
Thickness |
27.56" (700mm) |
27.56" (700mm) |
|
(R) Vertical Standby |
- |
11.81" (300mm) |
|
(P) Crosswise Reach |
70.87" (1800mm) |
70.87" (1800mm) |
|
(P) Crosswise Stroke Max |
62.60" (1590mm) |
55.71" (1415mm) |
|
(P) Crosswise Standby Min |
8.27" (210mm) |
15.16" (385mm) |
|
(P) (R) Proximity Min |
- |
12.20" (310mm) |
|
(R) Crosswise Stroke Max |
- |
55.71" (1415mm) |
|
(R) Crosswise Standby Min |
- |
2.95" (75mm) |
|
Base Offset |
3.94" (100mm) |
3.94" (100mm) |
|
Mold Mounting Face - Box End |
31.89" (810mm) |
31.89" (810mm) |
Optional Features
- Additional Vacuum Generator with Part Present Sensor
- Additional Part Grip
- Nipper on Chuck
- Rotation 90°, 180° 2-Position, 180° 3-Position
- Shuttle on Tool
- Mold Spray
- Air Blow
- 1-3 Color Alarm Light
- Special Paint
- Free Packaging
- Quick Chuck Change
- Absolute Encoder
- Extended Strokes
- Servo Posture Rotate
